RET205

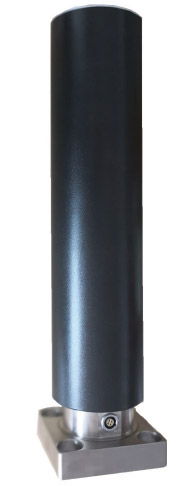

产品图片
PRODUCT IMAGE

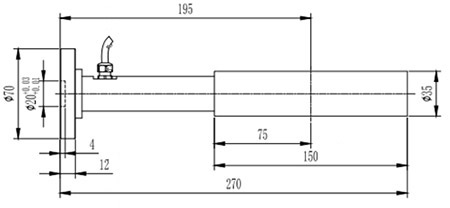

安装尺寸
MOUTING DIMENSION
特点与用途
FEATURES & APPLICATIONSl 张力测量传感器
l 结构紧凑便于安装
l 防护等级：IP65
l 超强防护能力
l simply bolted into place
l IP65 protection
l For the measured objects of static and dynamic load monitoring. Such as cranes, presses and roll stand
技术参数
SPECIFICATIONS参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 10,20,50kg |
输出灵敏度 | Rated Output | 1.0±20%mV/V |
零点输出 | Zero balance | ±0.05mV/V |
非线性 | Non-linearity | 0.1%F.S. |
滞后 | Hysteresis | 0.1%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5~12V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
电缆线尺寸 | Cable size | Φ5×2000mm |
材料 | Material | Alloy Aluminum（铝合金） |
防护等级 | IP Class | IP65 |
受力方式
LOAD DRIRECTION
配线图
WIRING CODE
