RET914
产品图片
PRODUCT IMAGE

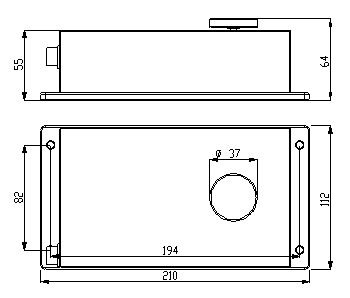

安装尺寸
MOUTING DIMENSION
特点与用途
FEATURES & APPLICATIONSl 高度低，变形量小
l 不锈钢材料
l 可定制、防护等级：IP66
l 电磁力高精度小微量程称重，适用于点胶等微量程称重
l Low profile，small deflection
l Made of stainless steel
l Customizable, IP66 protection
l Suitable for electromagnetic force with high precision and small micro-weighing, suitable for micro-weight weighing such as dispensing
技术参数
SPECIFICATIONS参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 100g |
分度值 | Division value | 0.1mg |
可重复性 | Repeatability | 0.2mg |
线性误差 | Non-linearity | 0.4mg |
四角偏载误差 | Four corners of partial load error | 1mg（100g） |
通信 | communication | RS232C |
灵敏度偏移 | Sensitivity migration | 1.5mg（100g） |
灵敏度温度漂移 | Sensitivity temperature drift | 3ppm/℃ |
激励电压 | Recommended excitation | DC24V |
温度补偿范围 | Compensated temp range | 10~30℃ |
工作温度范围 | Operation temp range | 5~40℃ |
相对空气湿度 | Relative air humidity | 20…80%rH |
受力方式
LOAD DRIRECTION
