RET197

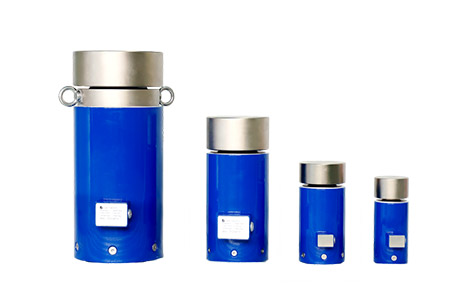

产品图片

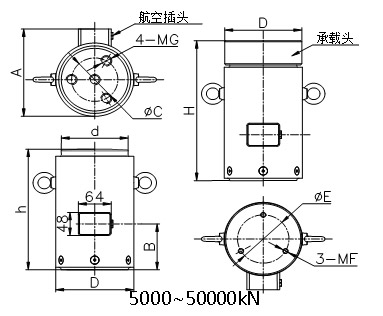

PRODUCT IMAGE安装尺寸

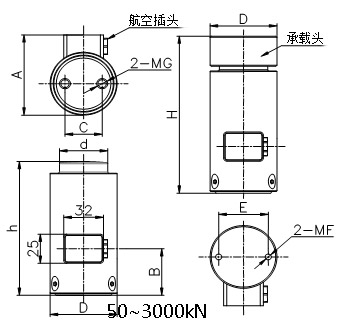

MOUTING DIMENSION特点与用途
FEATURES & APPLICATIONS−压向传感器
Compressive transducer
−额定载荷
Nominal (rated) forces
50kN,100kN, 200 kN, 300kN, 500 kN,
1 MN,2MN, 5 MN, 10 MN, 20MN,50MN
−结构紧凑
Compact size
−本体质量轻
Lowweight
−可作为计量用的测量标准源
Can be used as a measurement standard for measurement
技术参数
SPECIFICATIONSCapacity (kN) | A | B | C | D | d | E | H | h | F | G |
50,100,200,500 | 69 | 40 | 30 | 54 | 39 | 40 | 135 | 115 | M6深10 | M8深12 |
1000 | 93 | 60 | 40 | 78 | 60 | 50 | 175 | 150 | M6深10 | M12深20 |
2000 | 121 | 60 | 60 | 103 | 85 | 75 | 240 | 210 | M10深16 | M16深25 |
3000 | 145 | 70 | 75 | 125 | 105 | 90 | 290 | 250 | M10深16 | M16深25 |
5000 | 180 | 95 | 90 | 150 | 130 | 100 | 370 | 330 | M10深16 | M20深30 |
10000 | 245 | 125 | 120 | 215 | 190 | 120 | 450 | 400 | M10深16 | M20深30 |
20000 | 318 | 150 | 200 | 295 | 260 | 200 | 650 | 570 | M12深20 | M24深40 |
50000 | 487 | 185 | 300 | 455 | 420 | 300 | 800 | 600 | M12深20 | M24深40 |
