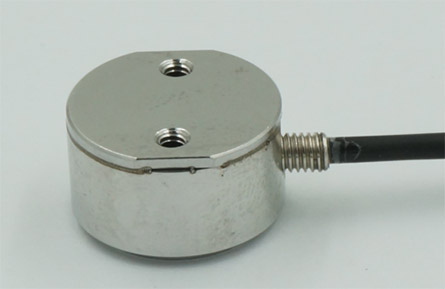

产品图片
PRODUCT IMAGE

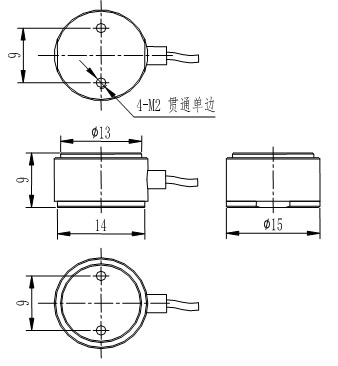

安装尺寸
MOUTING DIMENSION
特点与用途
FEATURES & APPLICATIONSl 微型传感器，精度高，带过载保护功能
l 不锈钢或铝合金材料
l 拉压双向
l 汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域，模具组装及其他工业测试、测量及控制系统
l 动态响应频率高
l Miniature load cel ad High precision with anti-overload protection
l Made of stainless steel or Aluminum
l Tension and compression application
l Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
l High dynamic response frequency
技术参数
SPECIFICATIONS参数 | Specifications | 技术指标/Technique |
额定容量 | Capacity | 10,20,50,100,200N |
输出灵敏度 | Rated output | 2.0±10%mV/V |
零点输出 | Zero balance | ±0.02 mV/V |
非线性 | Non-linearity | 0.05%F.S. |
滞后 | Hysteresis | 0.05%F.S. |
重复性 | Repeatability | 0.05%F.S. |
蠕变（30min） | Creep(30min) | 0.05%F.S. |
温度灵敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零点温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
输入电阻 | Input impedance | 350±30Ω |
输出电阻 | Output impedance | 350±5Ω |
绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
激励电压 | Recommended excitation | 5V |
最大激励电压 | Maximum excitation | 15V |
温度补偿范围 | Compensated temp range | -10~60℃ |
工作温度范围 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
电缆线尺寸 | Cable size | φ2×4000mm |
单件重量 | Weight approx. | 0.1kg |
材料 | Material | Stainless Steel |
防护等级 | IP Class | IP66 |
受力方式
LOAD DRIRECTION
配线图
WIRING CODE
