RET317

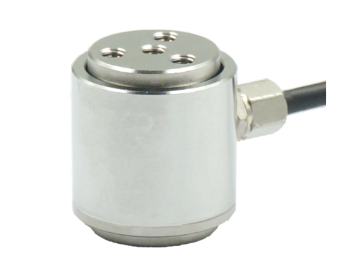

产品图片

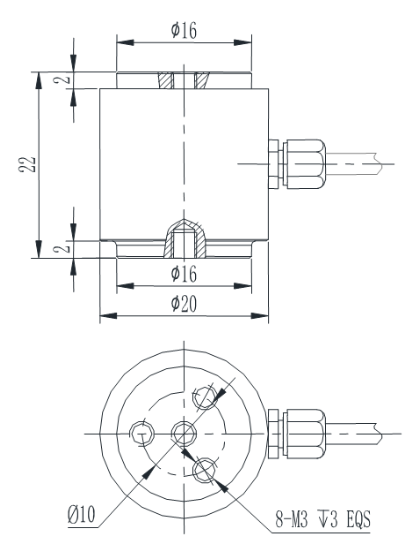

PRODUCT IMAGE安装尺寸
MOUTING DIMENSION特点与用途
FEATURES & APPLICATIONS微型传感器,高度低,变形量小
不锈钢材料
拉压双向
主要用于推、拉力计,料斗秤,各种工业称重系统等
Miniature load cell,low profile,small deflection
Made of stainless steel
Tension and compression application
Mainly used for pull and push dynamometer,hopper scale and
industrial measuring system

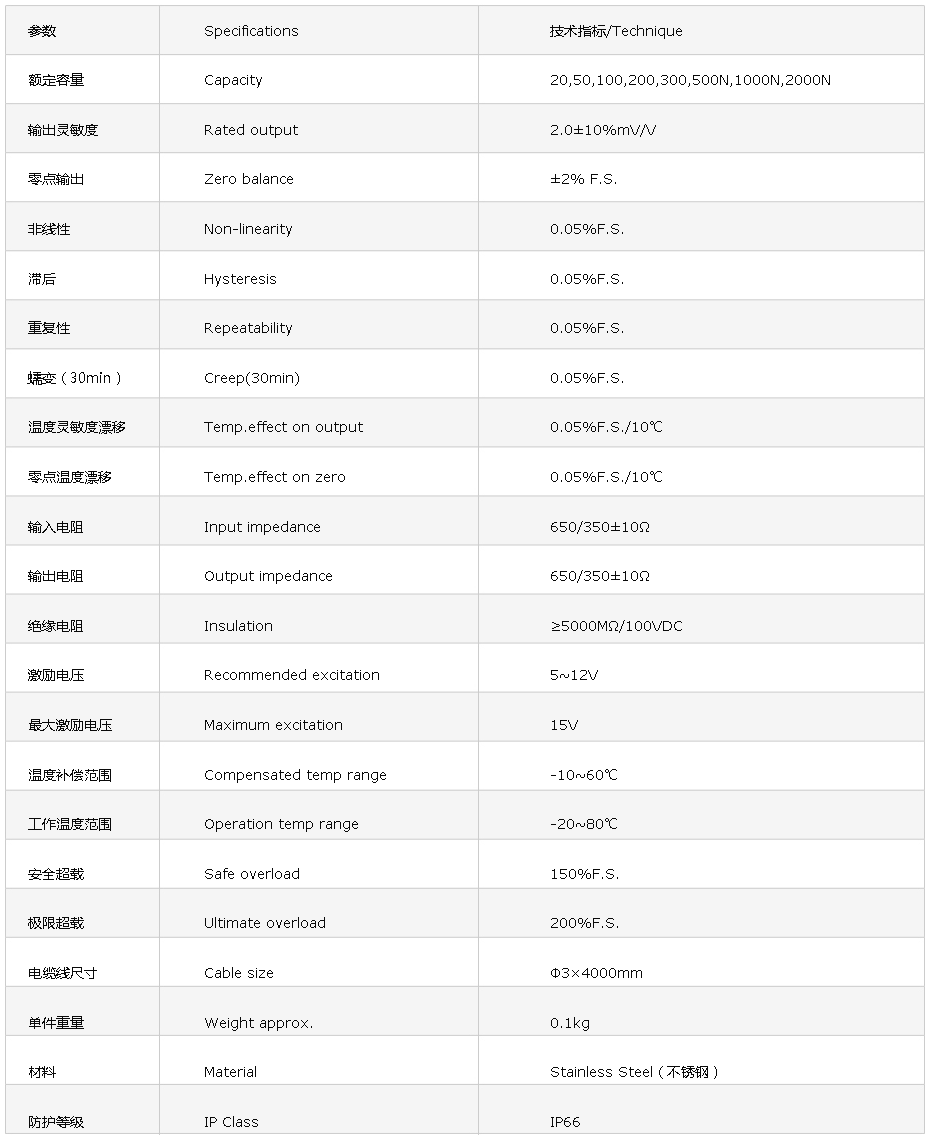

技术参数

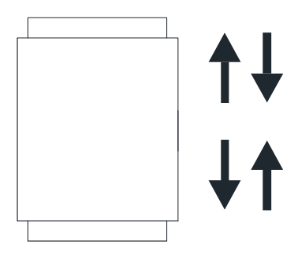

SPECIFICATIONS受力方式

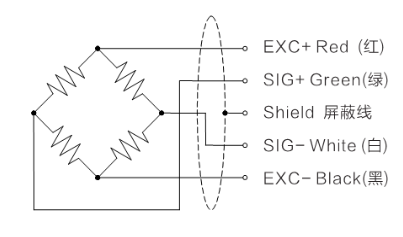

LOAD DRIRECTION配线图
