RET-J

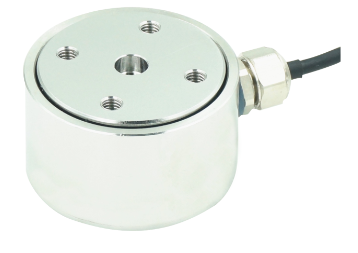

产品图片
PRODUCT IMAGE安装尺寸
MOUTING DIMENSION特点与用途
FEATURES & APPLICATIONS变形量小
不锈钢材料
拉压双向
主要用于推、拉力计,料斗秤,各种工业称重系统等
Small deflection
Made of stainless steel
Tension and compression application
Mainly used for pull and push dynamometer,hopper scale and
industrial measuring system

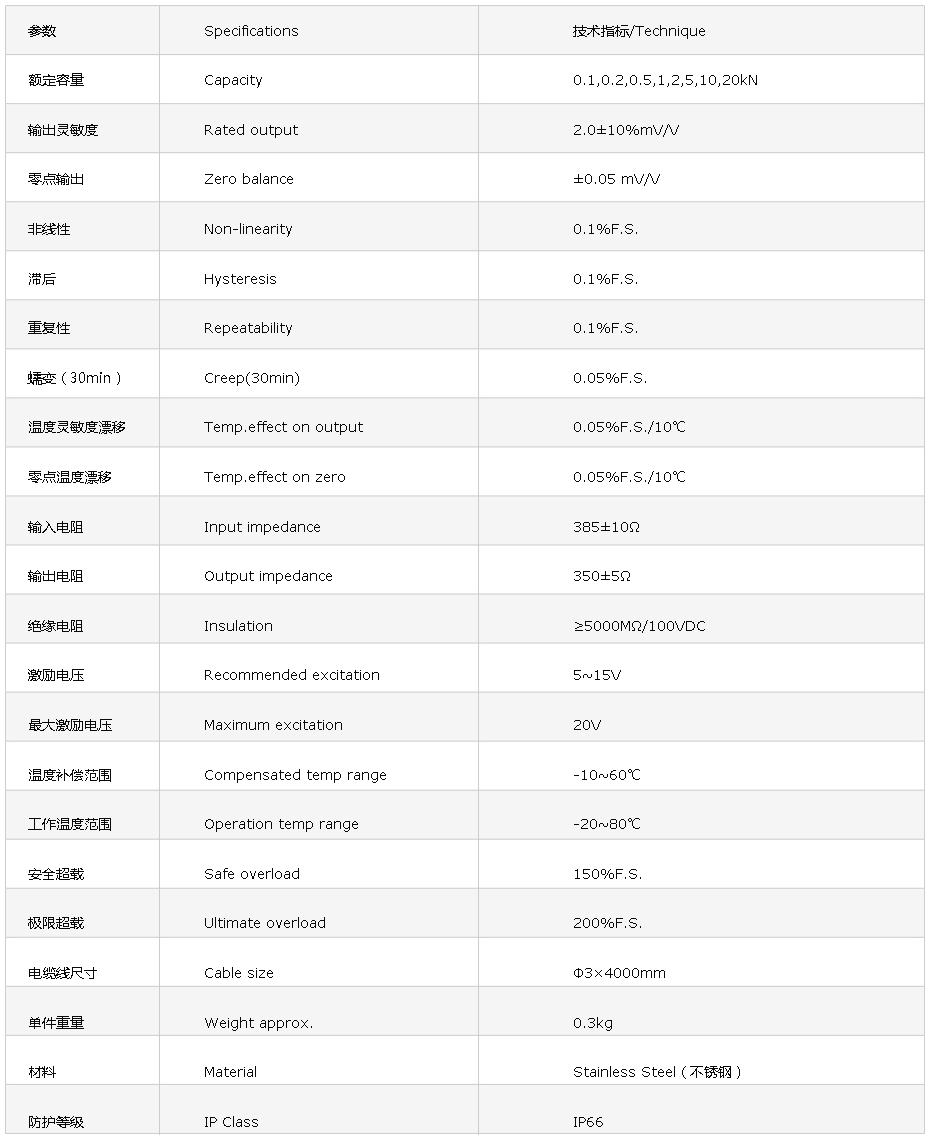

技术参数

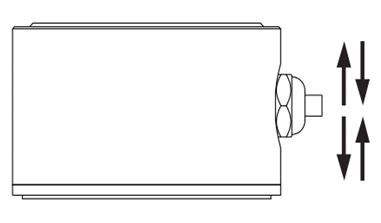

SPECIFICATIONS受力方式

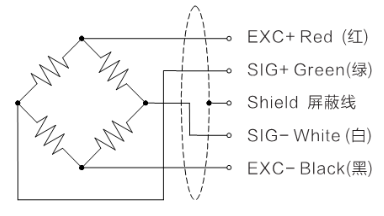

LOAD DRIRECTION配线图
