RET199
产品图片

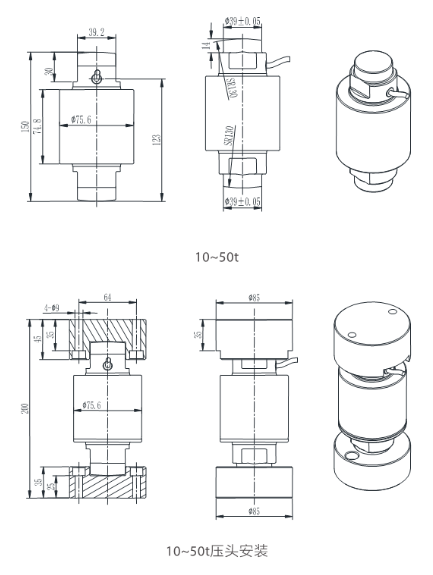

PRODUCT IMAGE安装尺寸
MOUTING DIMENSION特点与用途
FEATURES & APPLICATIONS柱式称重传感器,不锈钢材质,激光焊接密封;
双圆头摇柱式设计,动态响应快;
防护等级IP68,适用于汽车衡、轨道衡等恶劣环境的称重;
柱式结构抗过载、抗冲击能力强额定载荷
Column load cell with stainless steel material
and laser welding seal;Double round rocker design, fast dynamic response;
Protection class IP68, suitable for truck scale, railway scale
and other harsh environment weighing application;Column structure obtain strong ability for anti-overload and impact resistance.

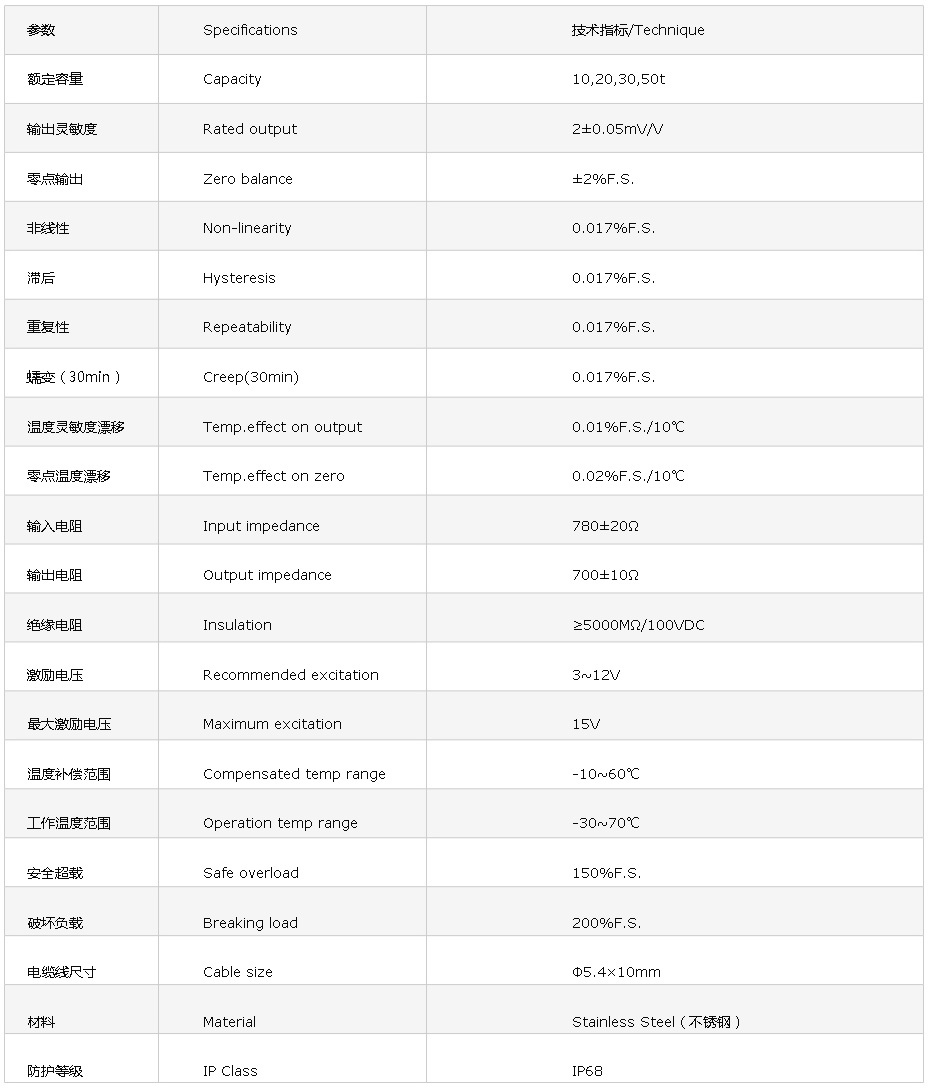

技术参数

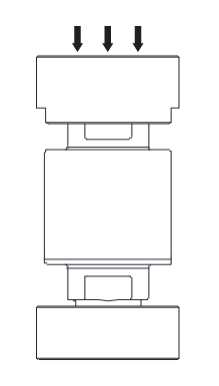

SPECIFICATIONS受力方式

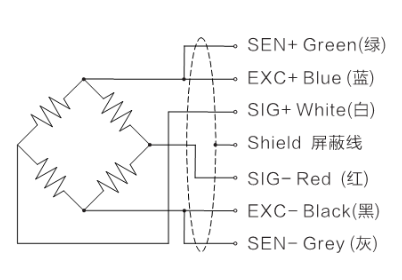

LOAD DRIRECTION配线图
